Yutaka No. 1

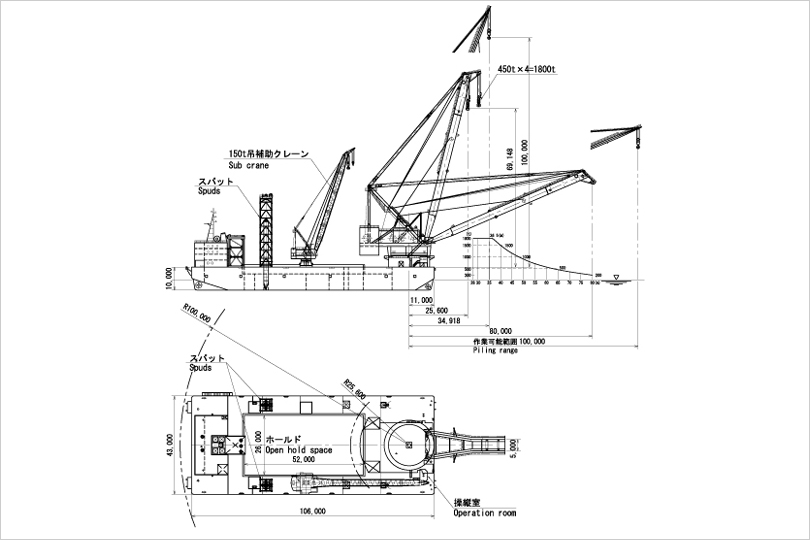

Crane Specifications
Crane Specifications Ship Specifications

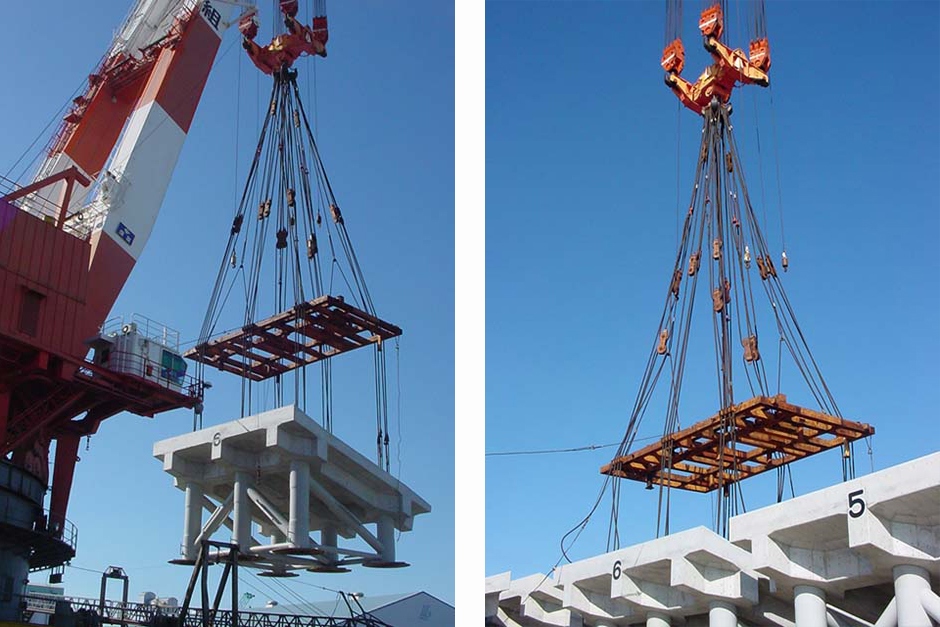

Rated 1,710t (using 4 x 450t hooks) Specification status

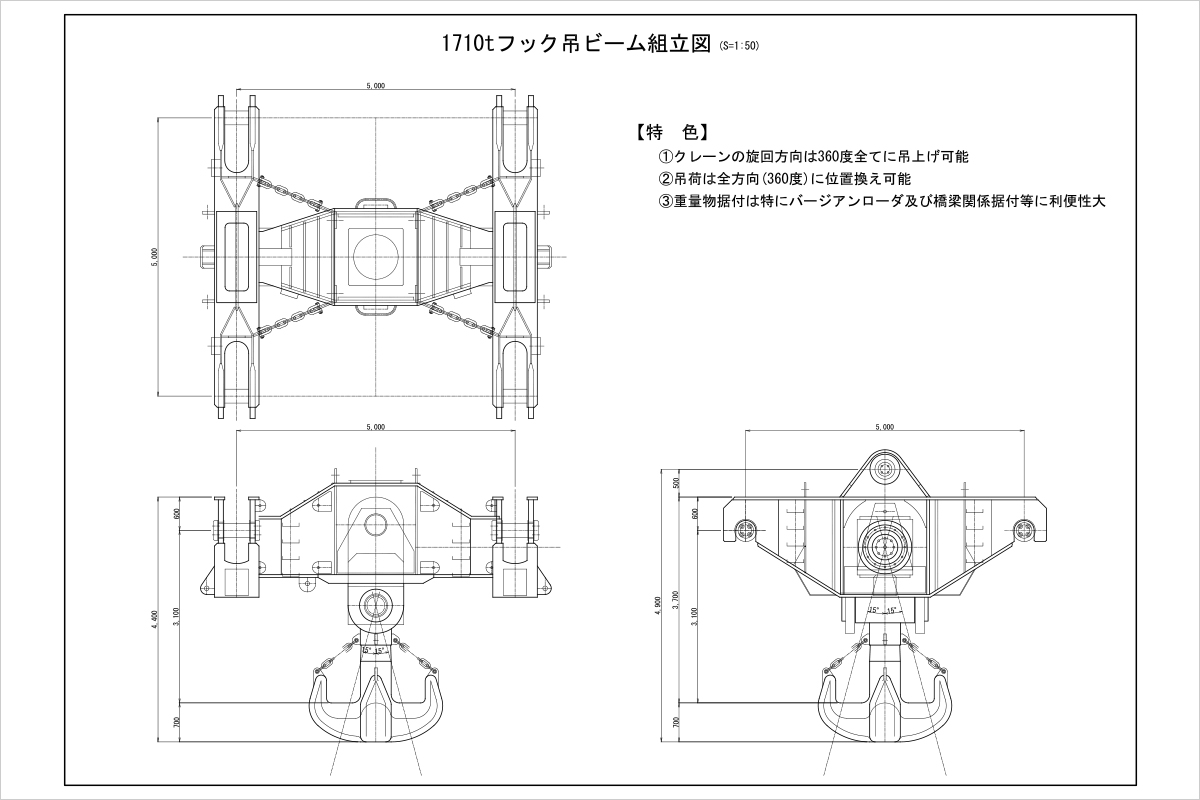

Detailed Drawing of 1,710t Suspension

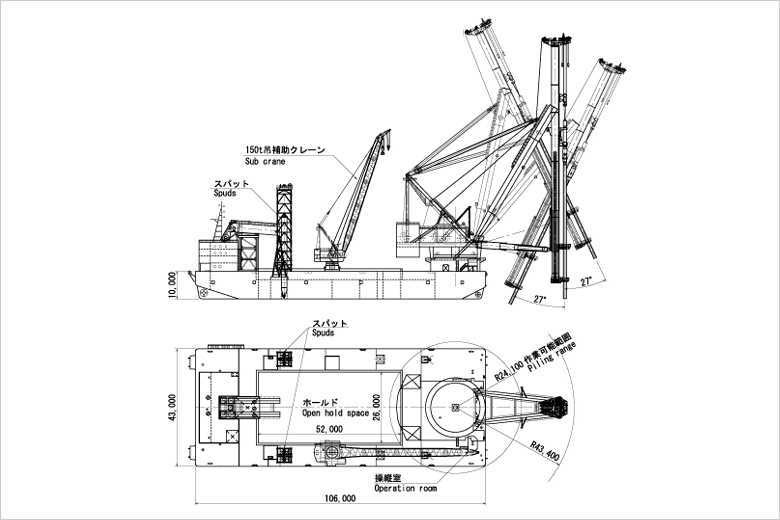

Pile Driving Leader Specifications
Pile Driving Leader Specifications Ship specifications

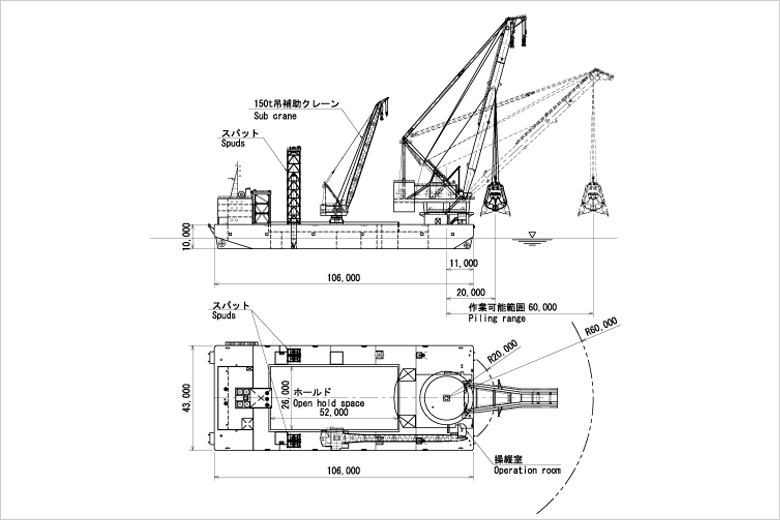

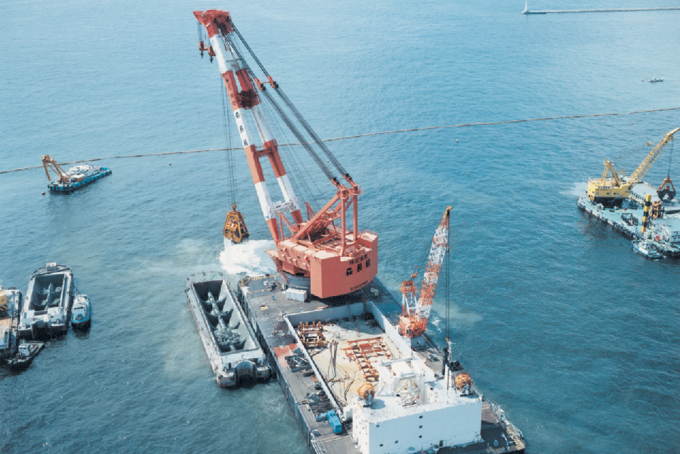

Grab Bucket Specifications
Grab Bucket Specifications Ship specifications
Main specifications
Hull Section
- Total length
- 106.0 m
- Width
- 43.0 m
- Depth
- 10.0 m
- Load capacity
- 16,000.0 ton
- Displacement
- 27,000.0 ton
- empty water
- 3.0 m
- Draft (laden)
- 6.8 m
Ship Handling Winch
- Pull load
- 60 t×8 units, 20 t×2 units
- Retrieval speed
- 60 t×10 m/min, 20 t×20 m/min
Side Thruster
- Forward side
- 900.0 ps
- Stern side
- 1,800.0 ps
Power Supply Equipment
- Main generator
- 2,200 kW×3 units
- Main generator engine
- 3,200 ps×3 units
- Auxiliary generator
- 240 kW×1 unit
- Auxiliary generator internal combustion engine
- 360 ps×1 unit
- Mobile generator for construction use
- 400 kW
Crane Specifications
- Maximum hoisting load
- 1,800.0 ton
- Hoisting speed
- 0～6.2 m/min
- Turning speed
- 0.3~0.8 rpm
- Working radius
- 28.0~80.0 m, 40.0~100.0 m (flying jib specification)
- Boom hoisting speed
- When lifting 1,800 t, R=40 m to 30 m, approximately 3 minutes without load

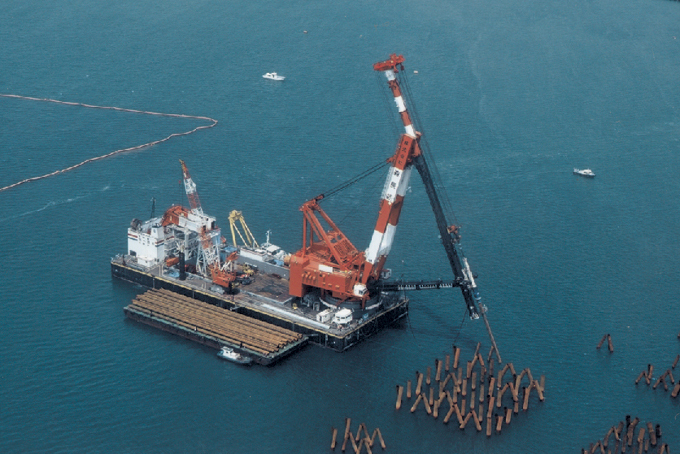

Pile Driving Leader Specifications
- Working radius
- 28.1 to 50.5 m (for straight piles)
- Maximum diameter
- 2,500 mm
- Pile inclination
- ±27°
- Turning speed
- 0.3~0.8 rpm
- Maximum weight
- 180 t (straight pile)
100 t (skew pile) - Hammer
- IHC S-500, S-280, S-200, S-90, S-70
Grab Bucket Specifications
- Maximum hoisting load
- 300 t
- Working radius
- 20~60.0 m
- Hoisting speed
- 40-75 m/min
- Unloading speed
- 55-75 m/min
- Maximum turning speed
- 0.8 rpm
- Nominal dredging capacity
- Light bucket 1,550 m3/hour
Ultra heavy bucket 460 m3/hour - Bucket capacity
- Light bucket 45 m3
Ultra heavy bucket 20 m3
Specifications
Crane Specifications
Pile Driving Leader Specifications
Grab Bucket Specifications
Construction results
Minami Honmoku -16mMC-3 Quay (Seismic Reinforcement) Construction Work

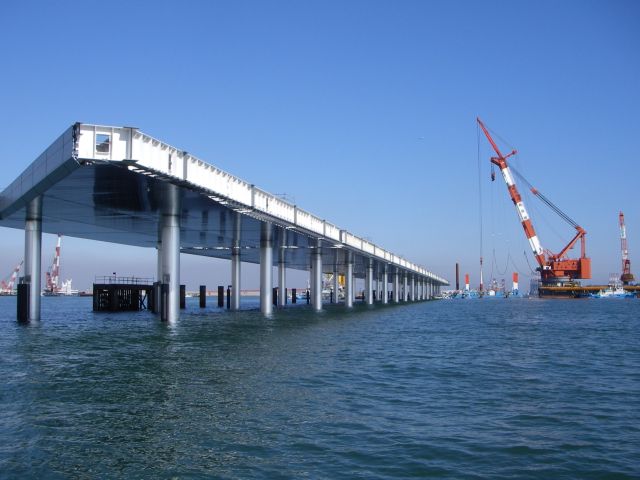

Tokyo International Airport Runway D External Construction Work

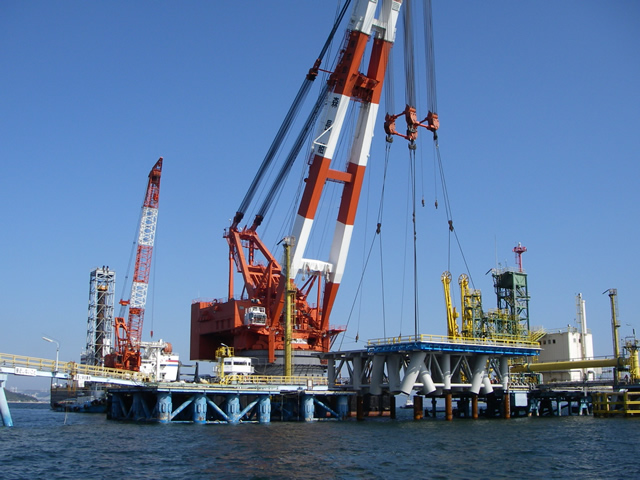

Cosmo Oil Sakaide Refinery No. 1 Pier Renovation Work

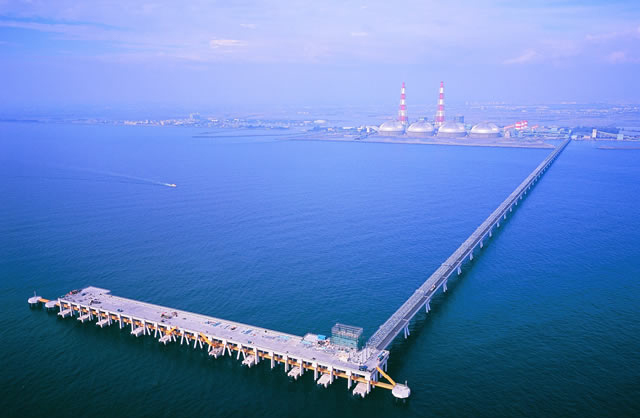

Taiwan Power Hsing-Ta Power Plant Offshore Unloading Pier and Link Bridge New Construction Project
